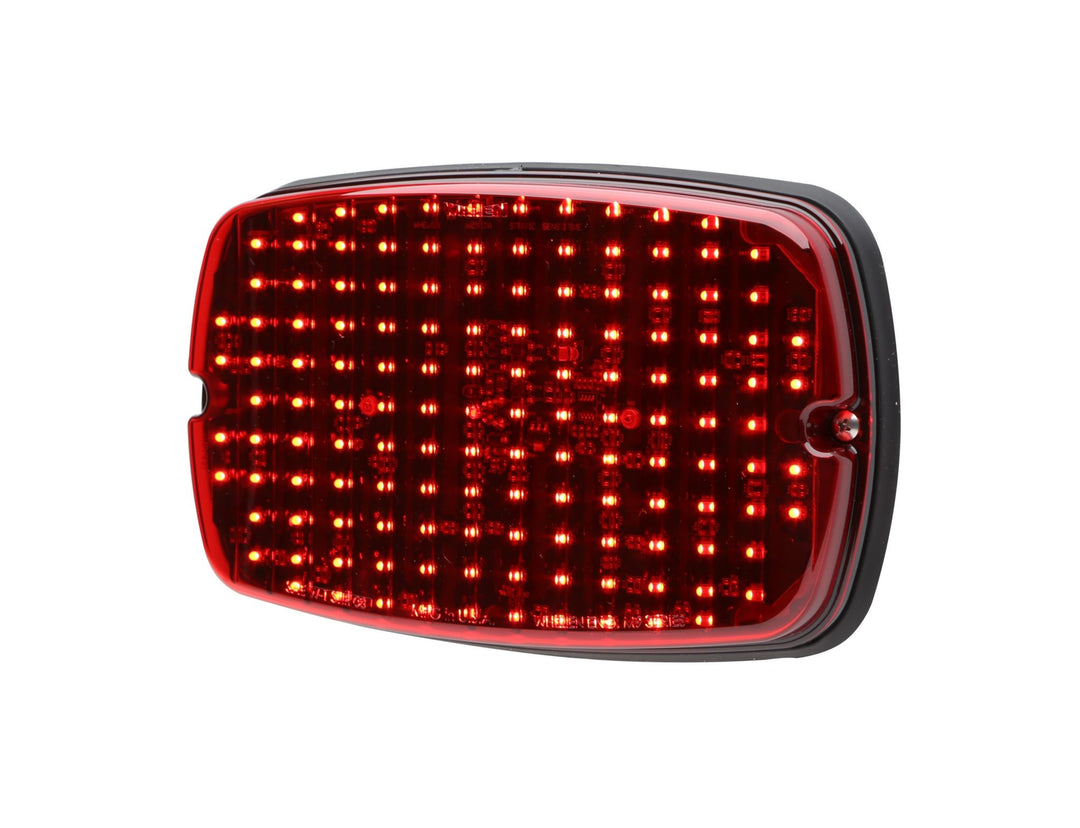

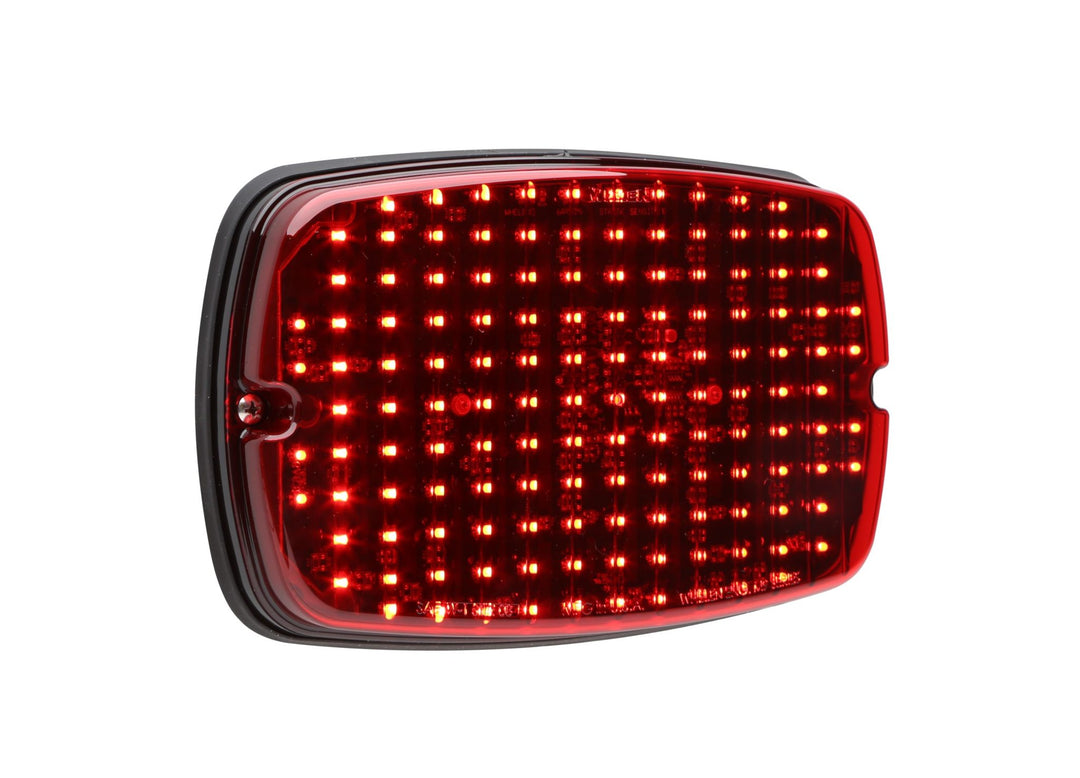

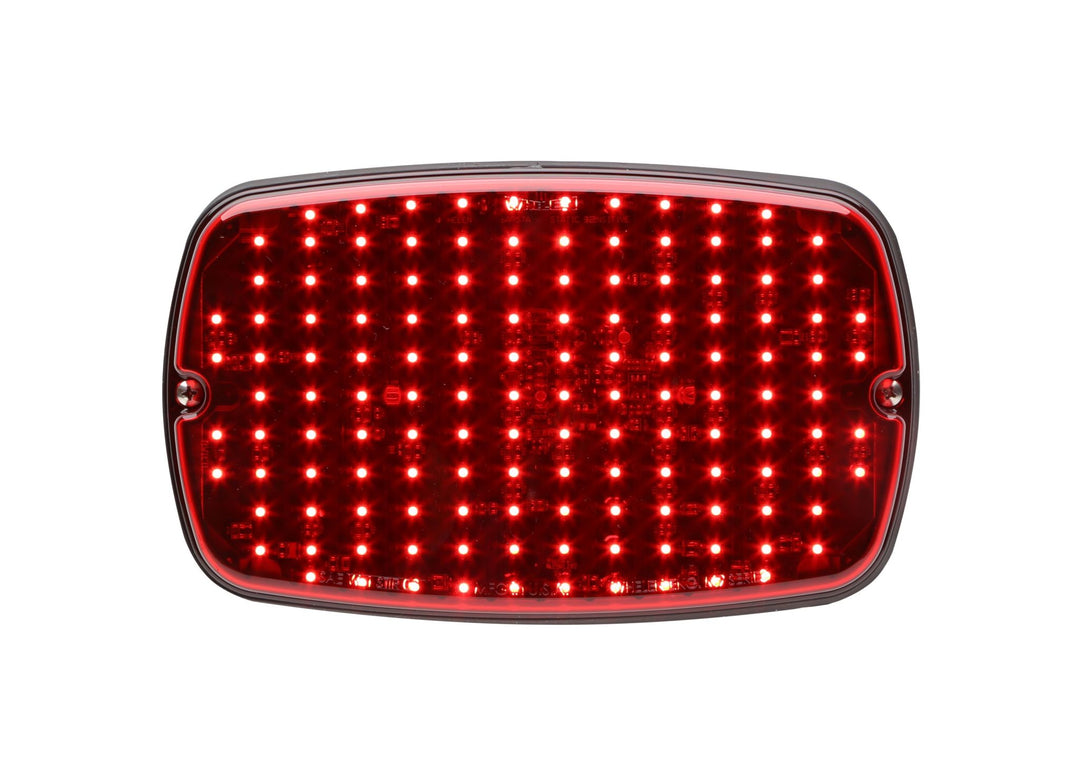

Whelen M9 Series Brake/Tail/Turn Super-LED


The M9 Series Brake/Tail/Turn Super-LED from " Whelen engineering" is the largest brake/tail/turn in the M series, it has a versatile lighthead for many applications. With ultra-bright but energy-efficient, provides reliability visibility, and safety even in inclement weather.

  • Brake/tail/turn, turn, and back-up lights meet applicable SAE requirements
  • Hard-coated lenses
  • Surface mounts via two screws for easy installation
  • A variety of mounting brackets and optional Chrome or Black flanges are available
  • Can be mounted vertically or horizontally
  • 136 LEDs for an extremely bright output.
  • 2 Scan-Lock patterns: Steady (Default) and SignalAlert-Steady.
  • Red optic, hard-coated polycarbonate lens
  • Four-wire, 6-inch pigtail
  • Rubber gasket, 2 screws, and screw grommets included for installation.
  • Voltage: +12 VDC
  • Amp Draw High: 0.75 Amps
  • Amp Draw Low: 0.055 Amps
  • SAE specifications J1398, J585, J1395, J586, and J1330. �
  • Height: 6.51"
  • Width: 10.34"
  • Depth: 1.39"
