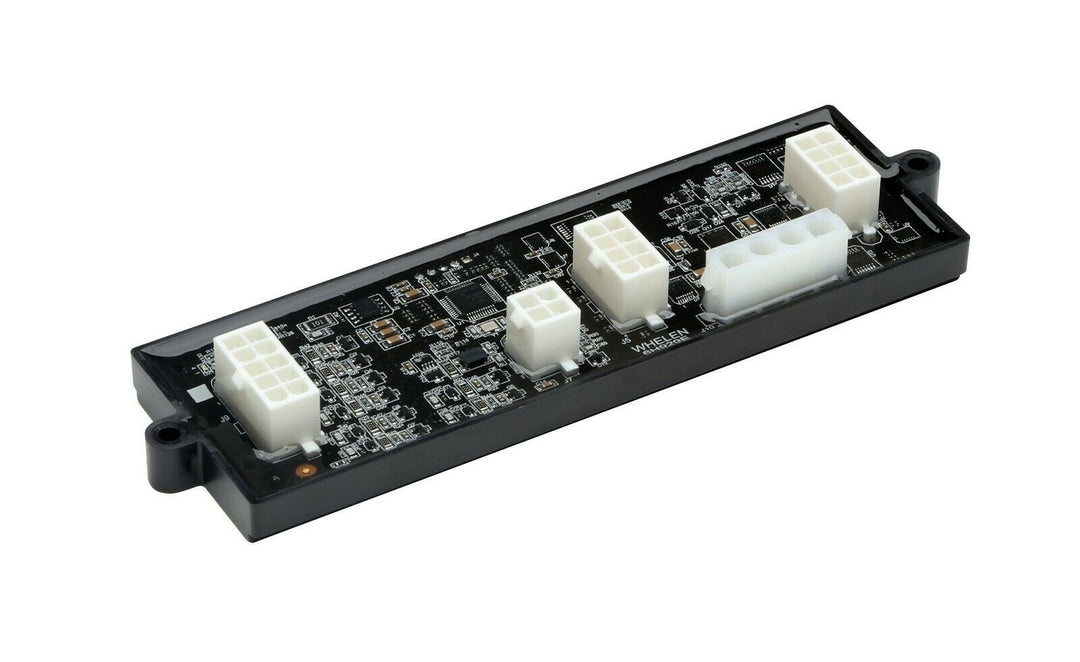

The Whelen CenCom Core WeCanX Expansion Modules add remote input and output capacity to compatible Core systems. Select the output count, voltage range, and current rating required for the installation.
Key Features
-
WeCanX Expansion: Remote modules for compatible Core systems.
-
Configuration Choices: Standard-current and high-current models.
Specifications and Model Guide
-
CEM8: Eight outputs, four inputs; 12.8 VDC; 2.5 amps per output
-
CEM16: 16 outputs, four inputs; 12.8 VDC; 2.5 amps per output
-
CEM16D: 16 outputs, four inputs; 10-30 VDC; 2.5 amps per output
-

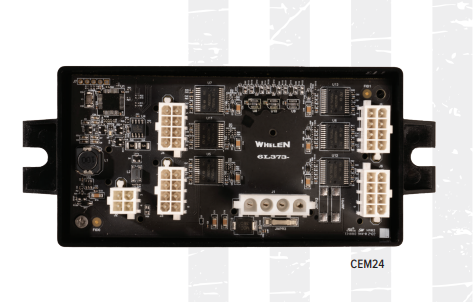

CEM24: 24 outputs; 10-30 VDC; 2.5 amps per output
-
CEM4HC: Four high-current outputs; 10-30 VDC; 15 amps per output
Important Selection Information
These modules are not interchangeable solely on output count. Confirm voltage, system compatibility, total-load limits, wiring, and mounting against the selected model's installation guide. Per-output ratings do not imply that every output may be loaded to its maximum simultaneously. These are expansion modules, not standalone controllers.
