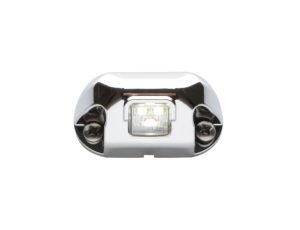

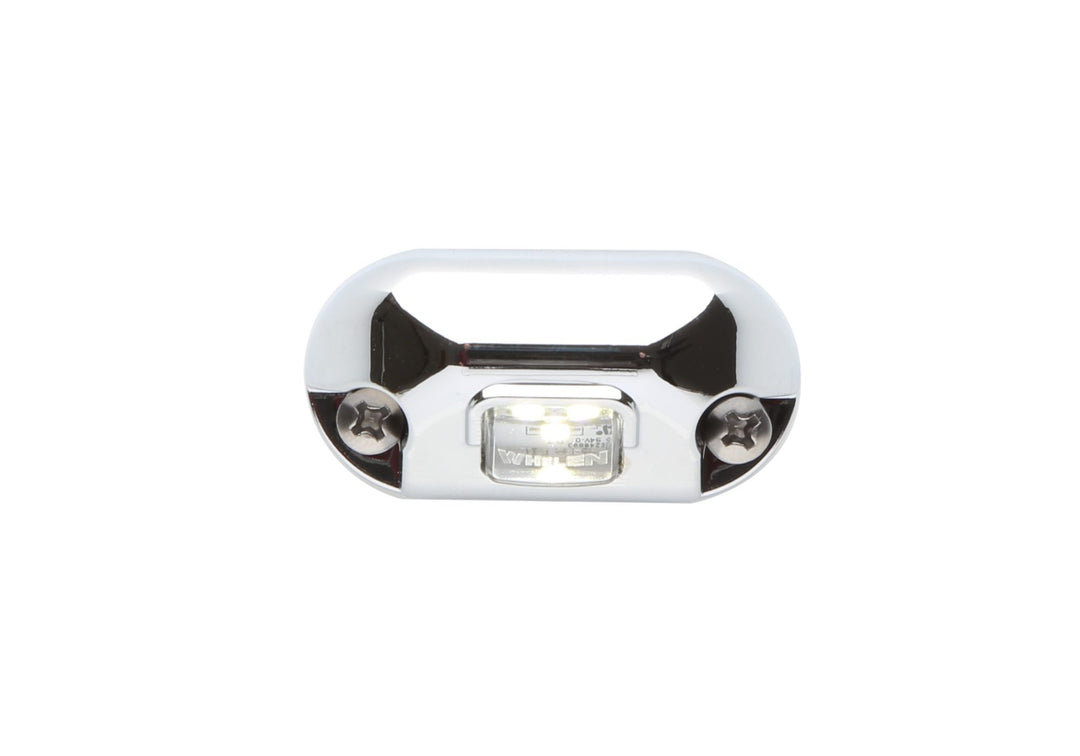

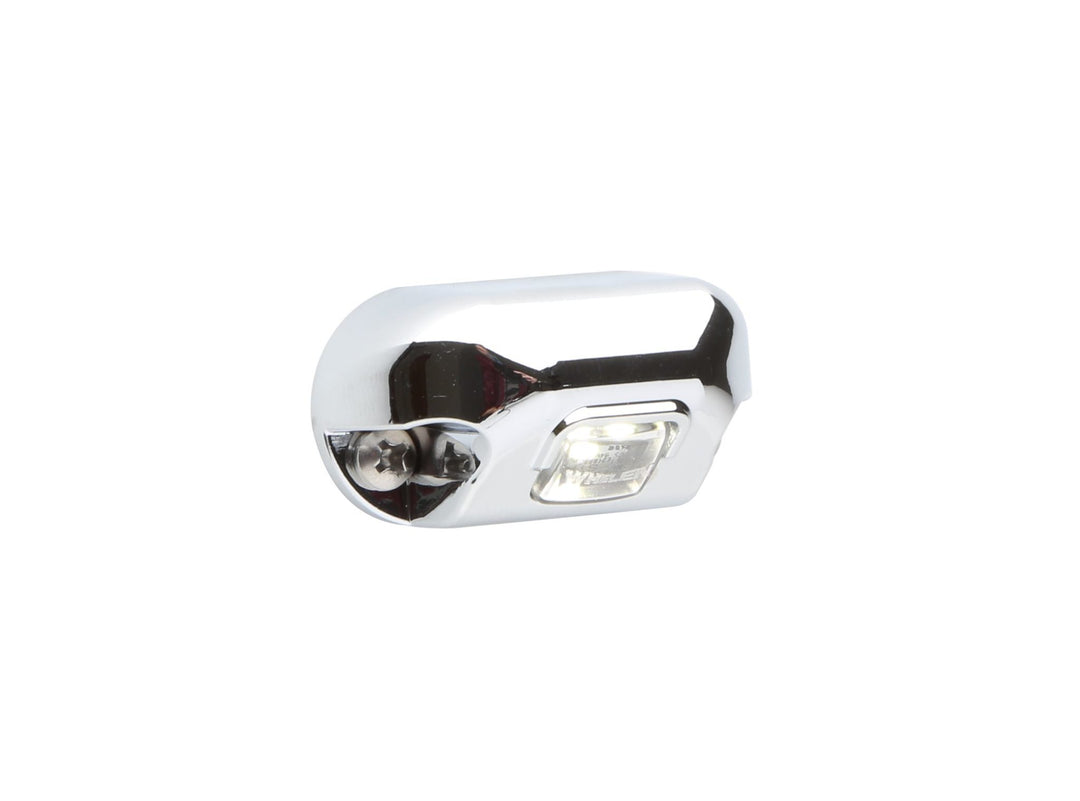

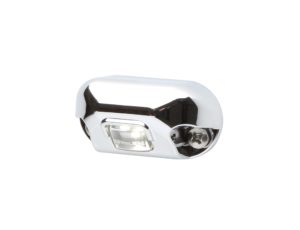

Whelen 0S Series 45° Marker / Clearance Light with Clear Lens


This small light 45 � angled bezel model from " Whelen " illuminates step surfaces for a sure step every time, all models include chrome-plated flange and mounting gasket. With Super-LED voltage draw 20 MA and produces 20 lumens, Features sonically sealed, waterproof lens and housing in a single unit.

  • White Illumination has a single Super-LED � diode. Available with standard or 45 � angled housing for surface or step lighting; certified to NFPA 13.10.3 surface lighting
  • All models include chrome-plated flange and mounting gasket
  • Surface-mounted
  • Encapsulated for moisture and vibration resistance
  • Includes 6" wire leads
  • Marker/clearance light available in red and amber, and certified to meet SAE J592
  • 5-year HDP � Heavy-Duty Professional warranty
  • Voltage: Extremely low 30mA (avg) amp draw
  • Super-LED Voltage: Draws 20 MA; produces 20 lumens
  • Height: .09"(22mm)
  • Diameter: .05" (13mm)
  • Length: 1.5"(38mm)
