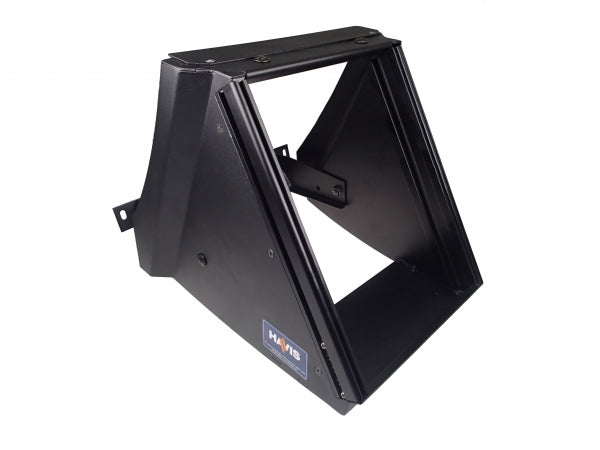

11" under dash vehicle-specific console for 2017-2021 Ford F-250, 350, 450 XL and XLT pickup, F-450 and 550 cab chassis, 2020-2021 F-600 Chassis Cab, 2015-2020 Ford F-150 XL and XLT pickup, 2015-2020 F-150 SSV, 2018-2020 F-150 Responder and 2018-2021 Ford
Designed for trucks with 40/20/40 split bench seats or 40/mini console/40 seats
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
Includes cutout and extension cable for relocation of one (1) OEM USB into the side of the console
Includes additional trim panel for XL dash without CD player
See side view drawing min/max mounting depth allowed for control heads and/or options
No additional vehicle mounting kit required
Works with C-DMM-3006
Works with dash monitor mount C-DMM-2006
Does not work with OEM manual transmission floor shifter
Does not work on higher trim levels with OEM full length center console
Does not work with 4 x 4 floor shifter ( works with dash mounted 4 x 4 selector switch)
