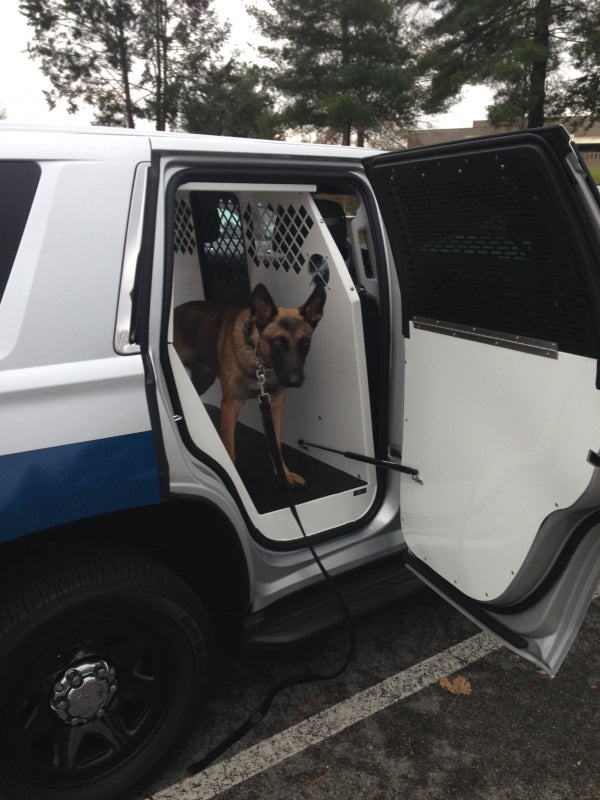

Next generation front slider door with full door range of motion left to right and improved sliders to eliminate rattle
Smooth edges and tight gaps to prevent injury, catch and chew points

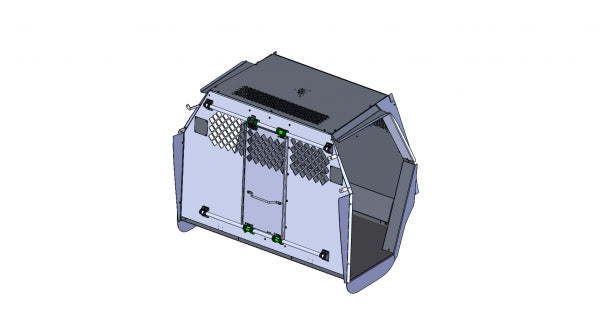

Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
Fabricated from Heavy-duty aluminum for long-lasting durability
Durable white powder coat finish on main components
Easy to install and clean
Designed to maximize driver seat travel without compromising K9 entry
Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting. fan can mount on driver or passenger side
10" fan and mount kit for window guard mounting (# K9-A-104 fan option sold separately)
Front wall includes mounting location for optional air circulation fan (K9-A-102 sold separately)
Ceiling includes perforated area to allow OEM air conditioning vents to blow into K9 compartment.
Ceiling also includes LED dome light with white or red color feature. (two position rocker switch included)
Includes Heavy-duty rubber mat
Black powder coat finish on center sliding door and window guards
41 inches from rear K9 wall to rear sill trim. Plus 4 inches from sill trim to OEM rear hatch (45" total)
K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidentally being put into the K9 compartment
Gross Weight: �250.00 lbs
Abbreviated Product Description:
K9, INSERT, TAH, 15-20,
