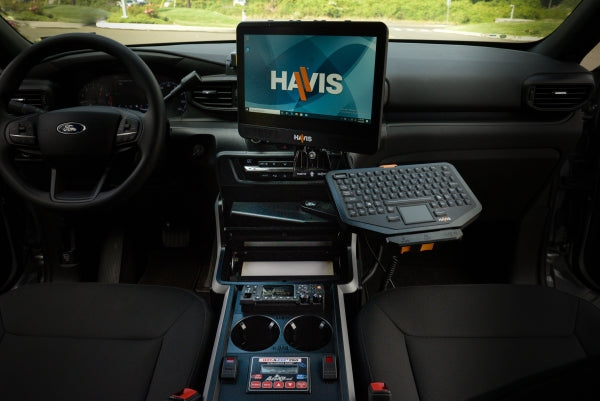

• Convenient package solution offers the essential elements for any Touch Screen Display installation
• Package includes C-VSX-1800-INUT-PM printer mount console, C-ARM-1001, CUP2-1004, MD-ARM-0603, C-DMM-2018, and CMX15600-08
• Integrated printer mount for Brother PocketJet printer stows safely inside the front of the vsx console and creates additional mounting space
• Easy access to printer controls and paper roll
• Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
• 18" total internal mounting space
• Heavy-duty "hood" for equipment mounting
• Ultra-low profile for safety and side-to-side egress
• Self-adjusts to fit cups up to 3.5" in diameter
• Holds 8 standard automotive blade-type fuses up to 30 AMPS (not included)
• Filler plates and equipment brackets included enclosing mounting areas
• Flip-up armrest pad bracket gives access to lockable accessory pocket (keys included)
• Articulating, overlapping swivel arms with built-in tilt swivel mounting plate
• Patented dash mount for monitors, Havis Touch Screen Display
• Made in the USA with a lifetime warranty

• Works with OEM ready for the road package wiring conduit
• 13" wide at the front, 9" wide at seats
• 24" total length
• Mounts between seats and fits lower dash contour once OEM tunnel plate is removed
• Use with Brother PocketJet 7 Series printers without battery, which has threaded inserts on printer used for mounting
• Compatible printers: Brother PocketJet PJ-722 & 762 Model kits
• Gross Weight: �43.25 lbs

Abbreviated Product Description:

PKG, CON, VSX, 18TMS, HC, PRNTR, INUT, 20-21,
