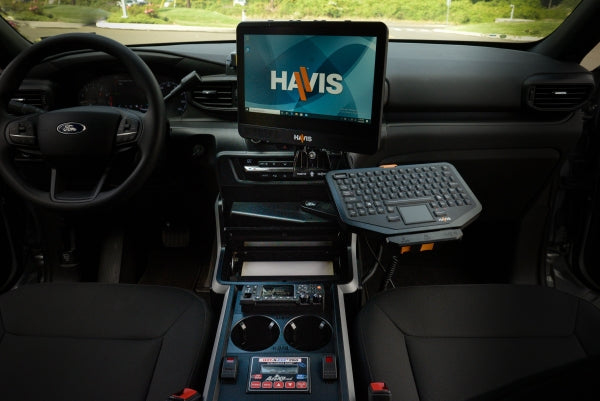

• Convenient package solution offers the essential elements for any installation
• Package includes C-VSX-1800-INUT-PM printer mount console, CUP2-1004 fixed mount cup holder, and CMX15600-08 8-Position fuse block
• Integrated printer mount for Brother PocketJet printer stows safely inside the front of the vsx console and creates additional mounting space
• Easy access to printer controls and paper roll
• Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
• 18" total internal mounting space
• Heavy-duty "hood" for equipment mounting
• Ultra-low profile for safety and side-to-side egress
• Self-adjusts to fit cups up to 3.5" in diameter
• Holds 8 standard automotive blade type fuses up to 30 AMPS (not included)
• Filler plates and equipment brackets included to enclose mounting areas
• Storage pockets, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Rear floor bracket with mounting hole pattern for CG-X
• Storage pockets, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Made in the USA with a lifetime warranty

• Works with OEM ready for the road package wiring conduit
• 13" wide at front, 9" wide at seats
• 24" total length
• Mounts between seats and fits lower dash contour once OEM tunnel plate is removed
• Use with Brother PocketJet 7 Series printers without battery, which have threaded inserts on printer used for mounting
• Compatible printers: Brother PocketJet PJ-722 & 762 Model kits
• Gross Weight: �29.25 lbs

Abbreviated Product Description:

PKG, CON, VSX, 18TMS, HC, PRNTR, INUT, 20-21,

Download any of the following documents for additional product information:

• Installation Instructions (PDF)
• Side View Depth Measurements (PDF)
