Havis Package - Docking Station with Triple Pass Through RF Antenna Connections, LPS-140 (120W Vehic

by Havis

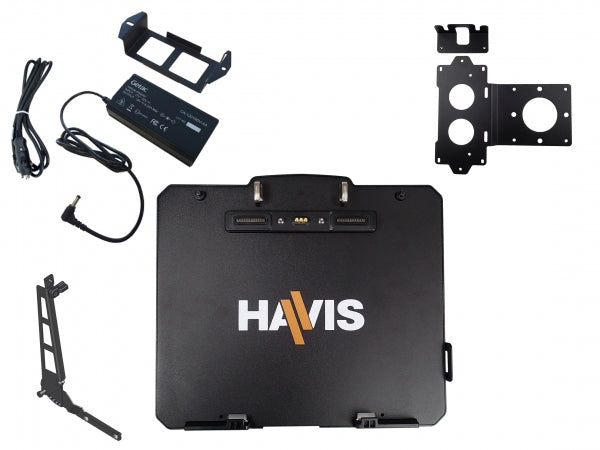

  • Package - DS-GTC-1001-3 docking station with triple pass-through rf antenna connections, LPS-140 (120W Getac vehicle power supply with LPS-208), and DS-DA-422 (screen support) for Getac K120 convertible laptop
  • Includes LPS-140 power supply with LPS-208 panel mount bracket for convenient mounting of the power supply
  • Includes LPS-211 accessory bracket for mounting the power supply directly to the docking station
  • Includes DS-DA-422 screen support, designed to support the laptop screen and reduce vibration
  • Low profile design maximizes available space inside of vehicle
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
  • Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
  • Lock and key supplied for peace of mind theft deterrence
  • Compatible computer: Getac K120 convertible laptop
  • Docking station dimensions (with mounting bracket): 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm)
  • Docking station dimensions (without mounting bracket): 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm)
  • Certifications: Vibration Testing: MIL-STD 810G 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
  • Connectivity - USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
  • Dock input power: 19V DC
  • Docking station product weight (without mounting bracket): 4.47 lbs (2.03 kg)
  • Docking station product weight (with mounting bracket): 5.85 lbs (2.65 kg)
  • Docking station product weight: 7.48 lbs (3.39 kg)
  • Product weight: 11 lbs (4.99 kg)
  • Gross Weight: 9.50 lbs

Abbreviated Product Description:


Download any of the following documents for additional product information:
