Havis Package - Docking Station and Screen Support, Panel Mount Bracket and Accessory Bracket for Ge

• Supports the Getac B360 and B360 Pro

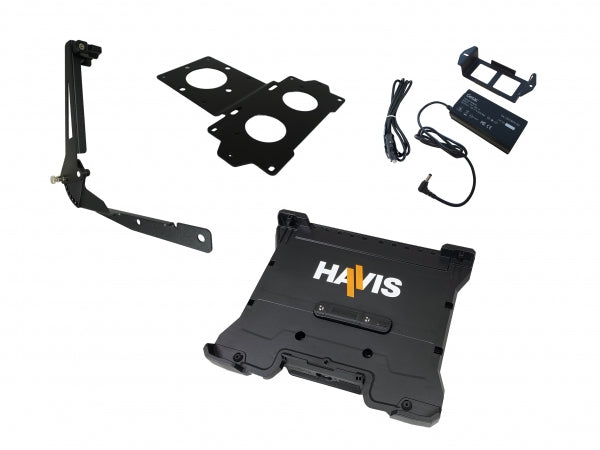

• Includes DS-GTC-1201 docking station, DS-DA-418 screen support, LPS-208 panel mount bracket and LPS-211 accessory bracket
• Ideal for public safety, military, utilities, manufacturing and other demanding environments
• Fits either computer size - no dock adjustments needed
• Durable, compact and lightweight
• One-handed docking
• Advanced port replication
• Reinforced mounting bracket
• Spring-loaded connector head
• Keyed-lock
• Powered by Getac 120W vehicle adapter (LPS-140, sold separately)
• Proudly made in the USA

• Compatible computer(s): Getac B360 and B360 Pro laptops
• Docking station dimensions (with mounting bracket): 11.52" l x 13.79" w x 2.54" h (293mm x 350mm x 64mm)
• Docking station dimensions (without mounting bracket): 11.52" l x 13.79" w x 2.41" h (293mm x 350mm x 61mm)
• Certifications: Vibration Testing: MIL-STD 810H 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
• Connectivity - USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on rear I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1)
• Dock input power: 19V DC
• Docking station product weight (without mounting bracket): 3.28 lbs (1.49 kg)
• Docking station product weight (with mounting bracket): 5.22 lbs (2.36 kg)
• Docking station gross weight: 6.50 lbs (2.95 kg)
• Product weight: 8.0 lbs (3.63 kg)
• Gross Weight: �9.29 lbs

Abbreviated Product Description:

PKG, DEVMT, DOCKST, GTC, B360,

Download any of the following documents for additional product information:

• Owner's Manual (PDF)
• Isoview Drawing (JPG)
