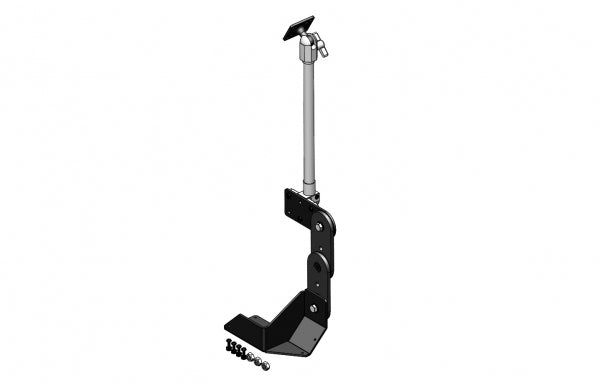

• Flex arm package including flex arm and mount for 2013-2019 Ford Escape
• Intended for lightweight keyboard or tablet applications up to 5lbs. total weight
• Flexible shaft C-FAM-201 included with swivel ball joint on top provides multiple positioning options
• Base bracket with Heavy-duty disc design allows for additional positioning and movement options
• Base bracket mounts under the passenger side seat Bolt (closest to transmission hump)
• Works with 1.20" x 1.50" (30mm x 38mm) AMPS hole pattern
• Keyboard or device can be removed by loosening ball mount at top
• Use C-ADP-112 adaptor for attaching to devices with VESA 75 hole pattern (sold separately)
• Optional quick release C-FAM-301 sold separately
• PKG-FAM-101 is recommended for console side mounting or flat surface mounting
• Does not work with C-KBM-xxx or C-3329-UNV mount

• Material: 10 ga. steel base plate with 1/4" thick positioning discs
• Black medium texture powder coat finish on steel parts
• Gross Weight: �5.00 lbs

Abbreviated Product Description:

PKG, DEVMT, UNVMT, FLEX, ESC, 13-19,

Download any of the following documents for additional product information:

• Installation Instructions (PDF)
• Installation Instructions (PDF)
• Isoview Drawing (JPG)
• Isoview Drawing (JPG)
