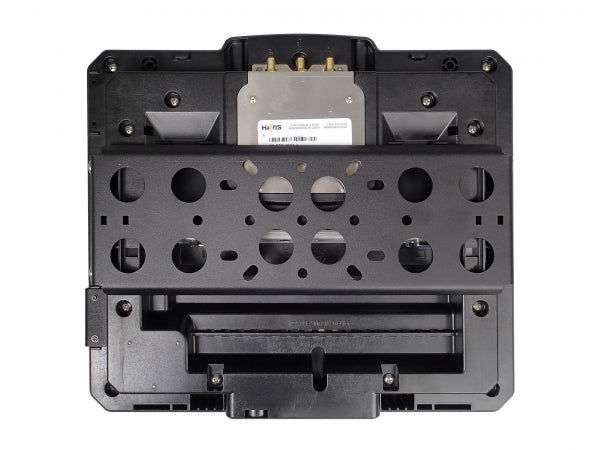

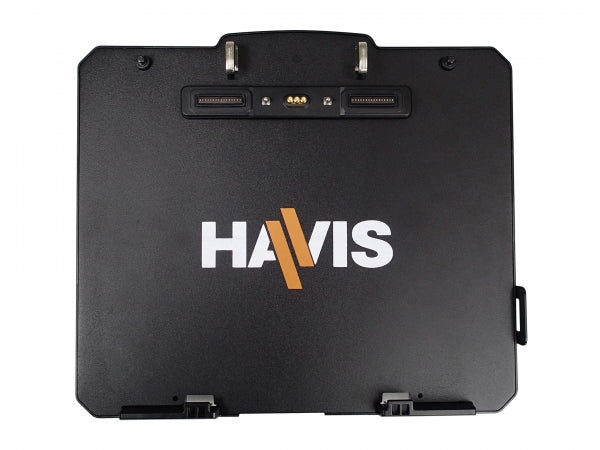

• Docking station with triple pass-through rf antenna connections for Getac K120 convertible laptop
• Low profile design maximizes available space inside of vehicle
• Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
• Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
• Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
• Lock and key supplied for peace of mind theft deterrence

• Compatible computer: Getac K120 convertible laptop
• Docking station dimensions (with mounting bracket): 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm)
• Docking station dimensions (without mounting bracket): 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm)
• Certifications: Vibration Testing: MIL-STD 810G 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing

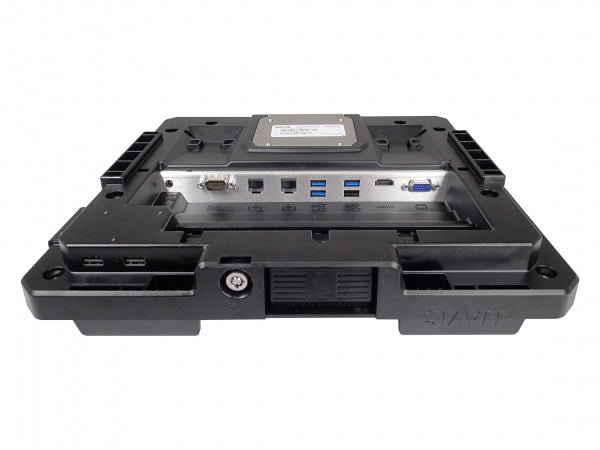

• Connectivity - USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
• Dock input power: 19V DC
• Docking station product weight (without mounting bracket): 4.47 lbs (2.03 kg)
• Docking station product weight (with mounting bracket): 5.85 lbs (2.65 kg)
• Docking station product weight: 7.48 lbs (3.39 kg)
• Gross Weight: �8.00 lbs

Abbreviated Product Description:

DEVMT, DOCKST, GTC, K120, [3]HGANT,
