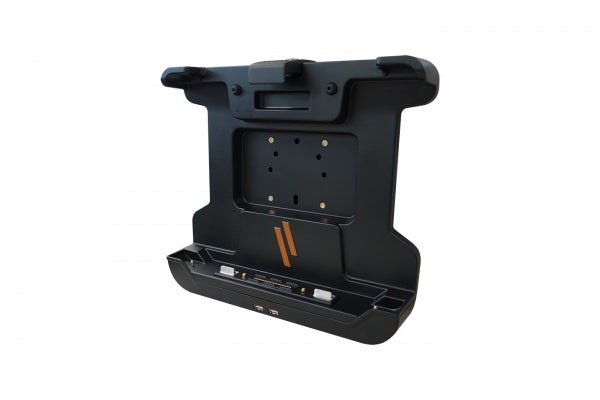

Havis (Advanced Port Replication) Docking Station with Dual Pass-Through Antenna Connections for Pan

by Havis
SKU DS-PAN-1205-2
  • view DS-PAN-1200 Series video

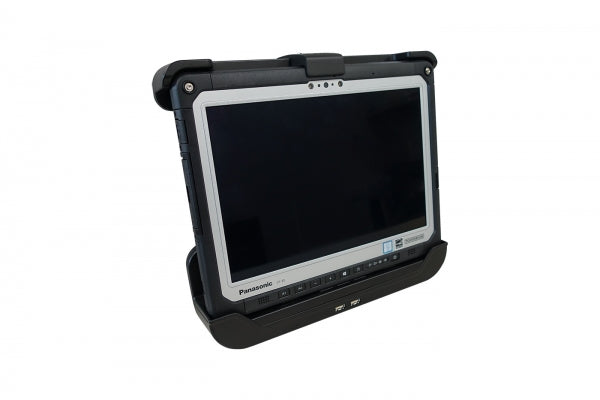

  • Ultra-rugged yet lightweight docking solution for Panasonic TOUGHBOOK 33 tablet only configuration
  • Includes power supply with customized cord length and connector tip
  • Low profile design maximizes available space inside of vehicle
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to peripherals
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
  • Lock and key supplied for peace of mind theft deterrence
  • 3 year limited standard warranty, enhanced protection plan option available
  • Compatible with hand strap and high capacity batteries
  • Compatible computer: Panasonic TOUGHBOOK 33 tablet only
  • Dimensions: 11.83" (30.00 cm) x 12.88" (32.70 cm) x 3.50" (8.89 cm)
  • Certifications: Panasonic TOUGHBOOK Certified, Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
  • Connectivity: USB: fully-powered USB 2.0 (4), USB 3.0 (2), Ethernet: RJ45 Ethernet (2), serial: DB9 (9-Pin) connection (1), video: HDMI (1), VGA (1), input power: 15.6 v DC, antenna connections: dual pass-through (TNC connectors)
  • Product weight: 3.08 lbs. (1.40 kg)
  • Gross Weight: �5.00 lbs

Abbreviated Product Description:


Download any of the following documents for additional product information:
