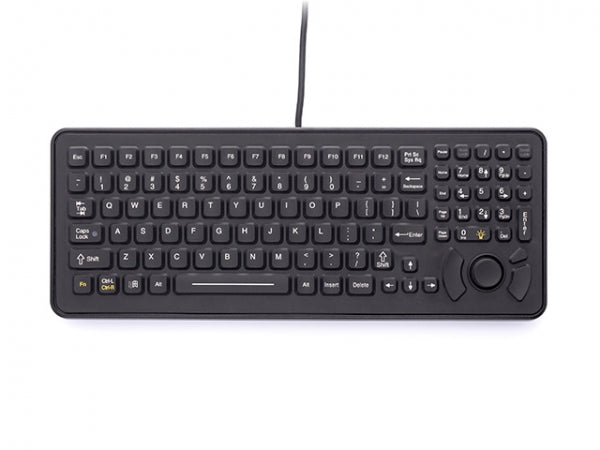

Havis Backlit Mobile USB Keyboard with Force Sensing Resistor

by Havis
SKU KB-117
  • Slim design offers full-size versatility in a rugged, compact housing with the added convenience of an integrated force sensing resistor
  • Ideal for use in industrial, medical and material handling applications
  • Large numeric pads allow for easy data entry
  • Features red LED backlit keys for use in areas with minimal lighting
  • Engineered to meet NEMA 4X specifications
  • Integrated AMPS pattern for convenient mounting
  • Robust polycarbonate case
  • 102-Key functionality
  • 12 function keys
  • Integrated 10-Key numeric pad
  • Ms windows �� function keys
  • 10-foot (3m) straight cable with USB type a connector
  • 1-Year limited warranty
  • Compatibility: all windows and macintosh os
  • Certifications and testing: FCC part 15 class b; Vibration Testing: power spectral density: 0.04g/Hz frequency range: 20Hz - 2 khz duration of test per axis: 3 hours; shock test: 3x11 ms pulses of 50g on each of 3 axes
  • Dimensions: 14.74" x 5.69" x 1.56" (l-w-d) 374.4mm x 144.5mm x 39.6mm
  • Product weight: 2.00 lbs +/- .10 lbs (0.91 kg +/- 0.05 kg)
  • Power: 235mA@5V (from CPU port)
  • Temperature range: storage: -40C to +90C (-40F to +194F) operating: -40C to +70C (-40F to +158F)
  • Humidity: 100% humidity resistant
  • Key switch: material: industrial silicone rubber life: 10 million cycles travel: 0.055 in. (1.4mm) actuation force: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) feedback: tactile with mechanical snap
  • Gross Weight:2.00 lbs

Abbreviated Product Description:
