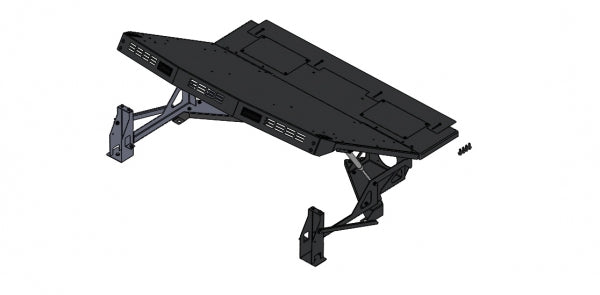

Havis 2020-2021 Ford Interceptor Utility Premium Raised Fold-Up Cargo Plate with 200 lbs Lift Struts

by Havis
  • Premium fold-up raised cargo plate fits 2020-2021 Ford Interceptor Utility
  • Includes two (2) 200 lbs gas lift struts for assistance in opening or closing - best for mounting storage or heavy equipment (for lighter applications, please use C-TTP-INUT-1201-80)
  • Replaces OEM rear cargo floor / spare tire cover and attaches without drilling
  • Equipment can be mounted on the underside of plate for protection (6.75" high space from top of spare tire to bottom of plate (more depth available to the side of the spare), or use with premium fold-up equipment tray (C-TTP-INUT-4, sold separately)
  • Allows easy access and removal of full size spare tire
  • Dual prop rods can be used to support mounting plate in open position
  • Dual lockable latches provide quick access or protection of equipment mounted beneath
  • Installer must drill and bolt on equipment as desired
  • Works with Havis standard-length K9, extended-length K9, and K9-PT inserts
  • Two (2) panels provide access to siren/radios and other equipment mounted in factory location under floor
  • Ships motor freight
  • Mounts to Interceptor Utility OE X-brace. does not work with retail Ford Explorer
  • Cargo plate includes hole pattern for mounting Havis, inc. storage drawers
  • Includes hole pattern and hardware to mount Havis SBX-1000 Series modular storage drawers
  • Recommended for over 60 lbs of mounted equipment
  • 80 lbs maximum weight rating for equipment that is bolted to the underside of platform (weight evenly distributed)
  • 400 lbs weight carrying capacity for cargo stored on top of the platform when closed (will not hold 400 lbs. in open position)
  • Cargo plate measures - 46.5" wide x 31.2" deep (front to back)
  • Forward trim panel measures - 40" wide x 4.7: deep (front to back)
  • Forward trim panel adjusts to fit against Havis K9, or some manufacturers' partitions
  • 14-gauge formed steel with a black medium texture powder coat finish
  • Accepts SBX-4004 fan
  • For use with Pro-gard rear partition, please orderPROKIT-2partition support strut relocation kit, adjustable forward filler panel works with some other manufacturers' rear partitions
  • For use with Setina partition, please orderC-TTP-INUT-Setina(sold separately) filler panel to close gap between Havis cargo plate and Setina partition
  • see video for installation tips & tricks
  • Gross Weight:104.00 lbs
