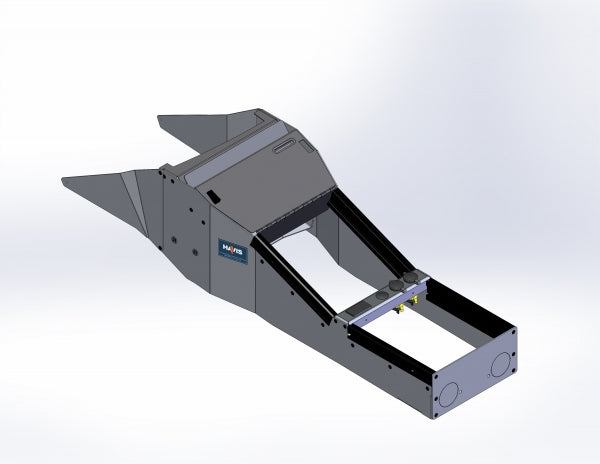

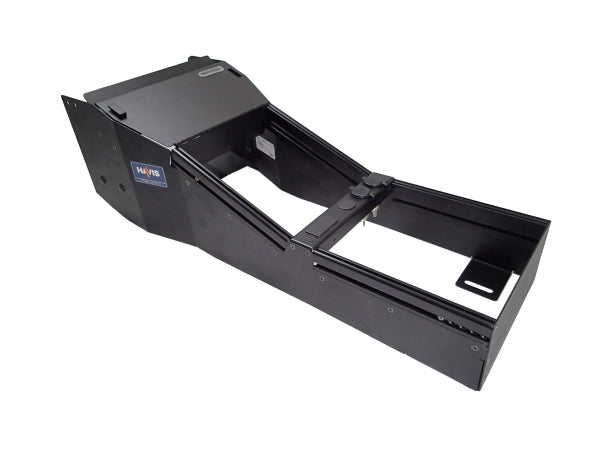

Havis 2011-2020 Dodge Charger Vehicle-Specific 18" Angled Console w/ Internal Printer Mount

by Havis
  • 18" angled vehicle-specific console with internal printer mount for 2011-2020 Dodge Charger
  • Single piece console housing w/ removable side panels mounts between seats and fits lower dash contour
  • Angled design minimizes height between seats
  • Accepts Brother PocketJet 6 and 7 printers included in PJ-622, 623, 662, 663, 673, 722, 723, 762, 763 and 773 Model kits
  • Hinged lid allows easy "top load" paper replacement, protects printer from spills, and has a window for viewing printer lights
  • Includes knockouts for running wiring through rear of console
  • Includes cutouts for OEM aux input and 12v plugs
  • Includes two (2) additional 12 volt sockets with wire and fuse mounted to crossbar, and a USB/switch (not included) cutout
  • Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Mounting kit included
  • Has mounting holes for C-HDM-204 or 214 side mount poles (sold separately)
  • Accepts most standard accessories (sold separately)
  • C-ARM-102 or C-ARM-103 armrests recommended (sold separately)
  • Works with C-DMM-2004
  • C-SM Series brackets not recommended because front of console is too wide
  • Does not work with 2016-2020 Dodge Charger Pursuit "big screen" models with the following factory option codes: integrated display package (AV2) or 12.1" touchscreen (RDY) with standard mini floor console (CUM) or street appearance group (AEB) with full l
  • 18" long internal equipment bracket and accessory mounting space, 9" in the front angled section and 9" in the rear horizontal section
  • See side view drawing min/max for mounting depth allowed for control heads and/or options
  • Gross Weight:20.00 lbs

Abbreviated Product Description:

CON, VS, 18TMS, 30DG, HC, PRNTR, CHGR, 11-20,

Download any of the following documents for additional product information:
