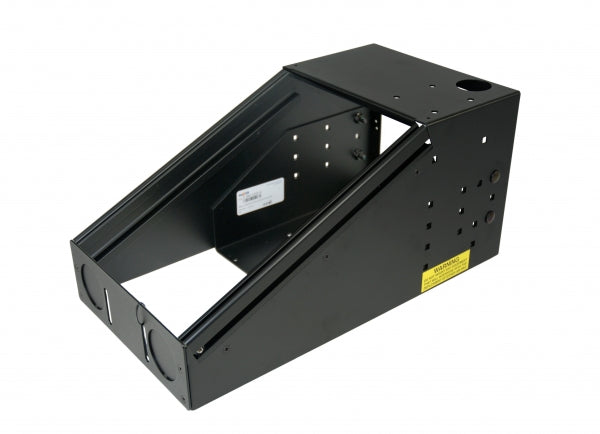

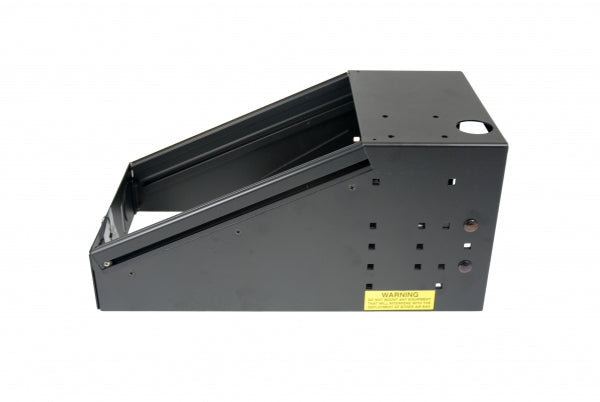

Havis 12" Enclosed 25 degree Angled Series Console

by Havis
SKU C-SM-1225
  • 12" enclosed 25 � angled Series Heavy-duty angled console
  • 8.375" high, 9" wide, 16.75" length, max. depth 9.25", min. depth 3.5"
  • 2 piece housing design allows for adjustable height (expands 1" or 2" to provide additional internal mounting depth)
  • Mounts to vehicle hump bracket, ordered separately (tunnel mount recommended)
  • Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Works with most Havis, inc. console accessories and control head equipment brackets
  • See drawing min/max for mounting depth allowed for control heads and/or options.
  • Standard wire knockout covers in front end panel of console can be removed to provide professional wiring of mounted equipment
  • Hole pattern on top right corner of console allows mounting of C-MD-102 mounting device
  • Hole pattern on the right side of console allows mounting of C-HDM-204 side mount telescoping pole
  • Internal angled cup holder not available for this console
  • Gross Weight:13.00 lbs

Abbreviated Product Description:


Download any of the following documents for additional product information:
