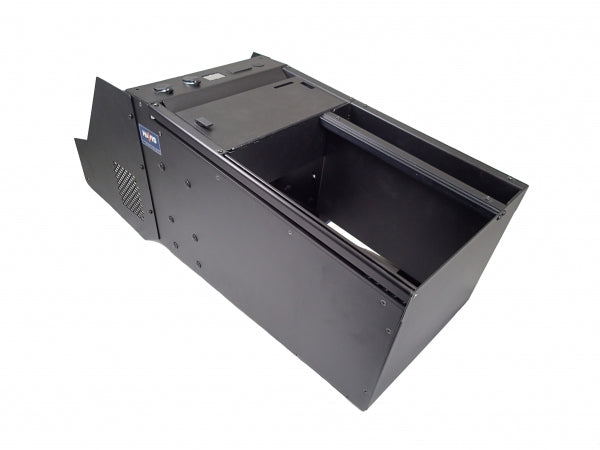

Havis 12.5" Wide 13" Vehicle-Specific Console w/ Internal Printer Mount for 2015-2020 Chevrolet Taho

by Havis
  • 13" vehicle-specific wide console with internal printer mount for 2015-2020 Chevrolet Tahoe Police Pursuit Vehicle (PPV) & 2015-2020 Chevrolet Suburban
  • 13" of total equipment mounting space in 9"W section
  • 13" of total equipment mounting space in 3.3"W section
  • Single piece console housing w/ removable side panels mounts between seats and fits lower dash contour
  • Accepts Brother PocketJet 6 and 7 printers included in PJ-622, 623, 662, 663, 673, 722, 723, 762, 763 and 773 Model kits
  • Hinged lid allows easy "top load" paper replacement, protects printer from spills, and has a window for viewing printer lights
  • Accepts standard Brother paper rolls with 2.25" OD x 8.5" l x .50" ID
  • Includes cutout for OEM aux input plugs or cover plate
  • Includes two (2) additional 12 volt sockets with wire and fuse mounted to front top panel, and a USB/switch (not included) cutout
  • Includes speaker cutout in removable side panel
  • Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
  • Mounting kit included
  • Has mounting holes for C-HDM-204 or 214 side mount poles (sold separately)
  • Accepts most standard accessories (sold separately)
  • Works with side mount armrest C-ARM-102 (sold separately)
  • Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
  • Passenger side front trim panel includes a knockout plate for when OEM 120 volt socket is used
  • 13" long internal equipment bracket and accessory mounting space
  • See side view drawing min/max for mounting depth allowed for control heads and/or options
  • Works with C-DMM-2003
  • Does not accept C-SM Series brackets
  • 3.3"W section now comes unpopulated
  • Customize to your specific needs
  • Includes equipment brackets and filler plates to enclose area
  • See Havis 3.3" wide console accessories for options
  • Gross Weight:62.00 lbs
