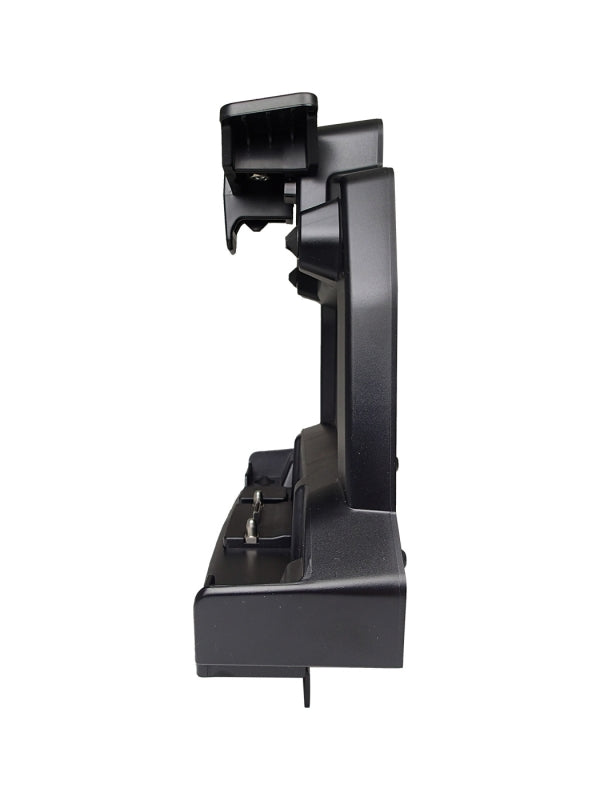

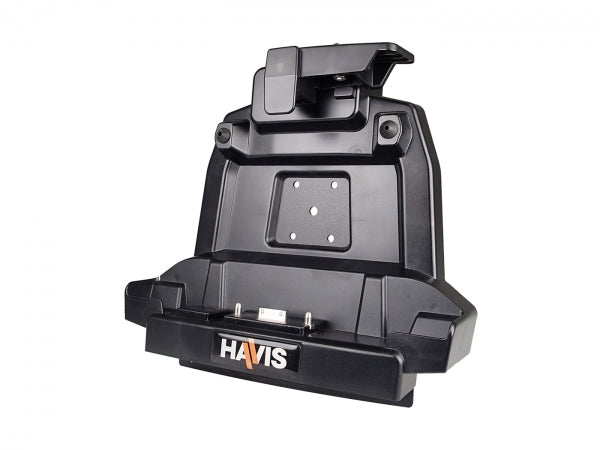

Havis Docking Station with JAE Docking Connector, Dual Pass-Through Antenna Connections and Power Supply for Getac's Z710 and ZX70 Rugged Tablets

by Havis
SKU DS-GTC-712-2
  • Supports Getac's ZX70 and Z710 tablets in a variety of demanding environments
  • Includes LPS-164 vehicle power supply to provide maximum reliability for any mobile worker
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
  • Low profile design maximizes available space inside of the vehicle
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of the docking station
  • Designed to fit all VESA 75 hole pattern mounting equipment
  • Lock and key supplied for peace of mind theft deterrence
  • Compatible computer: Getac Z710 and ZX70 rugged tablets
  • Docking connector: JAE
  • Dimensions: 8.7" (22.1 cm) x 9.2" (23.4 cm) x 2.9" (7.4 cm)
  • Certifications: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
  • Connectivity: USB: fully-powered USB 2.0 (2), Ethernet: RJ45 Ethernet (1), serial: DB9 (9-Pin) connection (1), video: HDMI (1), speaker (1), dock input power: 12V DC, antenna connections: dual pass-through (SMA)
  • Product weight: 4 lbs. (1.81 kg)
  • Gross Weight: 6.00 lbs

Abbreviated Product Description:


Download any of the following documents for additional product information:
